Electronic Pressure Switches
| PS-05 | electronic pressure switch with stainless steel sensor |

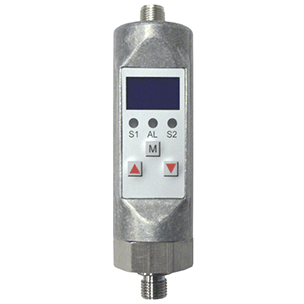

| PS-04N | electronic pressure switch with up to 2 switching outputs and additional analog output |
| AZ-01N | plug-in display to expand pressure transmitters with analog output |
Please click on the highlighted row to display the related datasheet.
Profimess GmbH · Schleusenstr. 3 · D-27568 Bremerhaven ·
Deutschland
Tel.: +49 (0)471 9824 151 · Email: info@profimess.de
|
Media: liquids and gases
Wetted: FKM and stainless steel or only stainless steel
max. Pressure: up to 1000 bar
max. Temperature: 125°C
Process connection: G1/2"- or G3/4"-male thread (also with frontflush diaphragm)
Supply: 24 VDC
Display: LED
Output: up to 4 transistor switching outputs
Switching load: max. 125 mA
| PDF datasheet |
 |
| Leftclick on icon to open, Rightclick on icon to save as... |
|
Media: liquids and gases
Wetted: FKM or EPDM, brass, st. st. or ceramics
max. Pressure: up to 600 bar
max. Temperature: 100°C
Process connection: male thread with or without front flush diaphragm
Supply: 15...32 VDC
Display: LED, height 9 mm, red
Output: up to 2 transistor switches and 4...20 mA or 0...10 VDC
Switching load: max. 32 VDC, 500 mA
| PDF datasheet |
|
| Leftclick on icon to open, Rightclick on icon to save as... |
|
Inputs: 4...20 mA or 0...10 VDC
Outputs: up to 2 setpoints wired as o.c. PNP transistor circuit
Display: 4-digit, red, 7 mm high
Supply: by supply of connected transmitter
Option: ATEX version
| PDF datasheet |
|
| Leftclick on icon to open, Rightclick on icon to save as... |
